Standard BAC Quick Start Guide

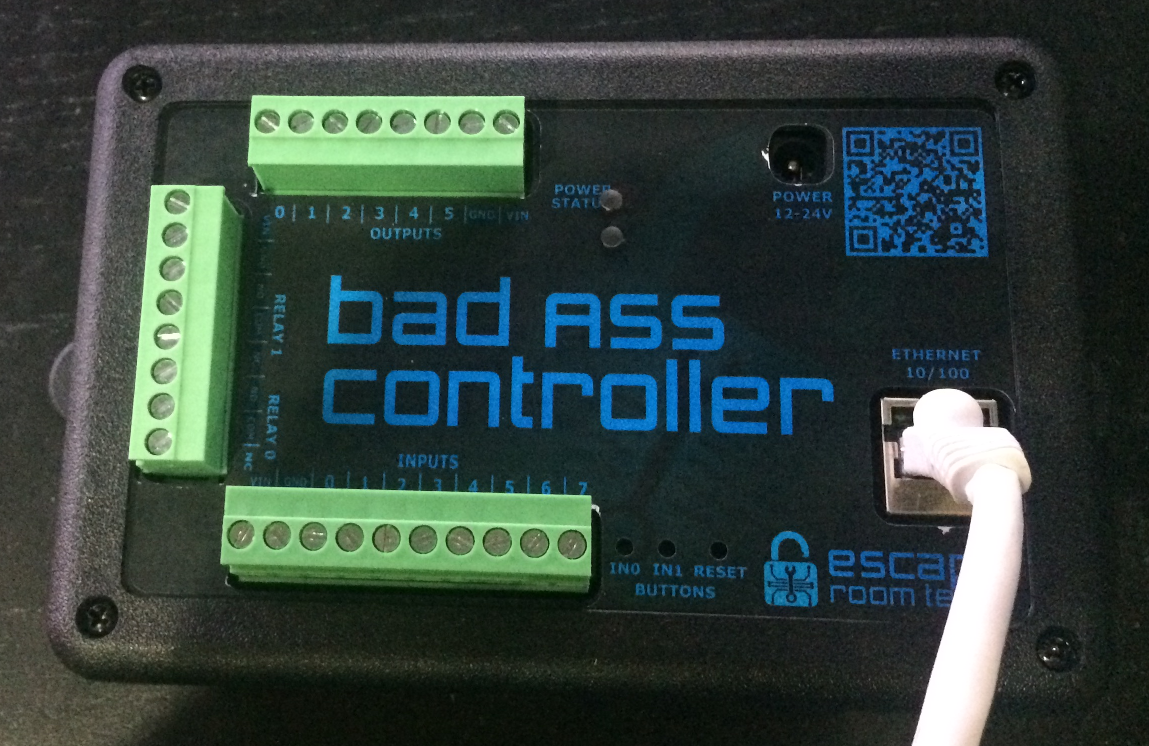

  1. Connect your BAC using an ethernet cable. The device expects to be on a network with DHCP. Most networks with a router have this.

    drawing

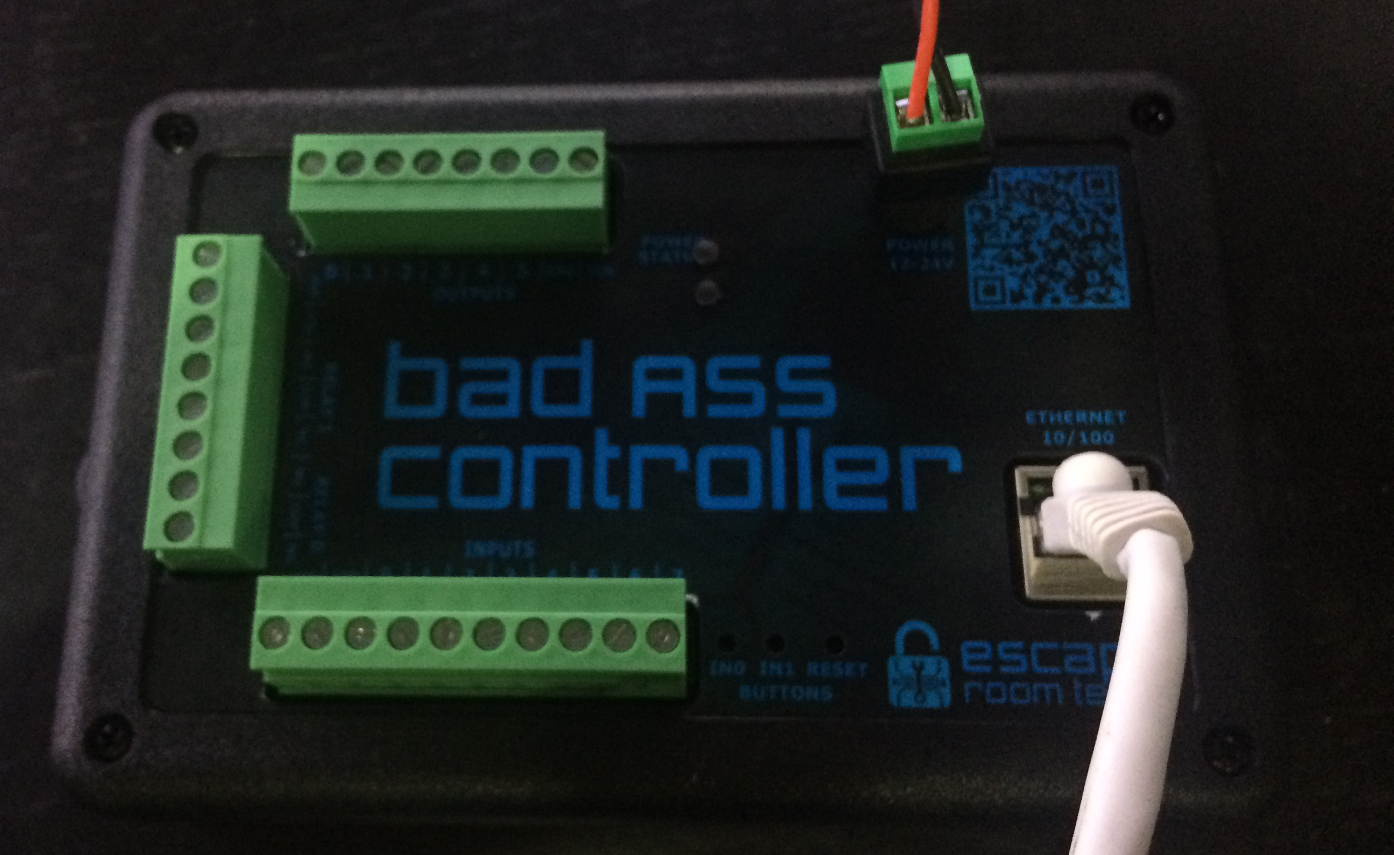

  2. Apply power. Use the wall adapter optionally purchased with the product and plug in the barrel connector. Alternatively, wire in 12V-24V DC from another source at the any of the three green headers.

    drawing

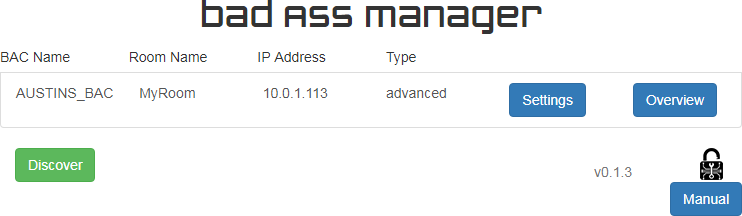

  3. On the BAM homepage find your BAC in the list and click Settings.

    drawing

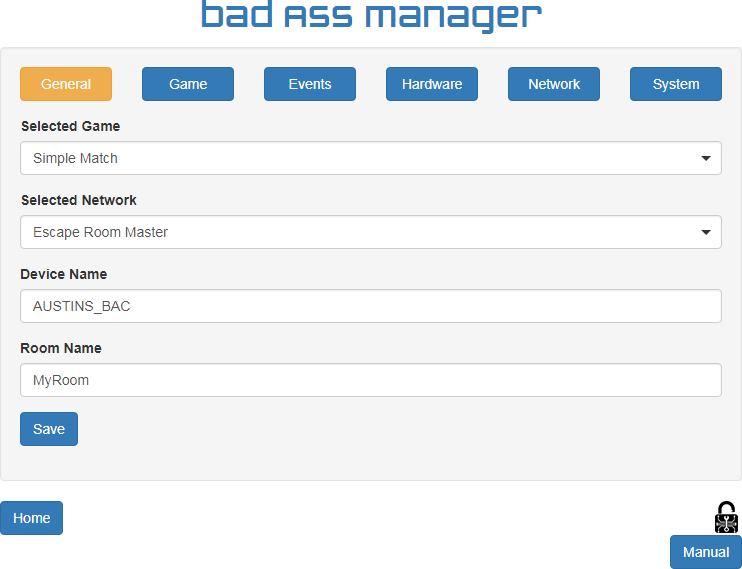

  4. On the General page choose your desired game and network. Click Save.

    drawing

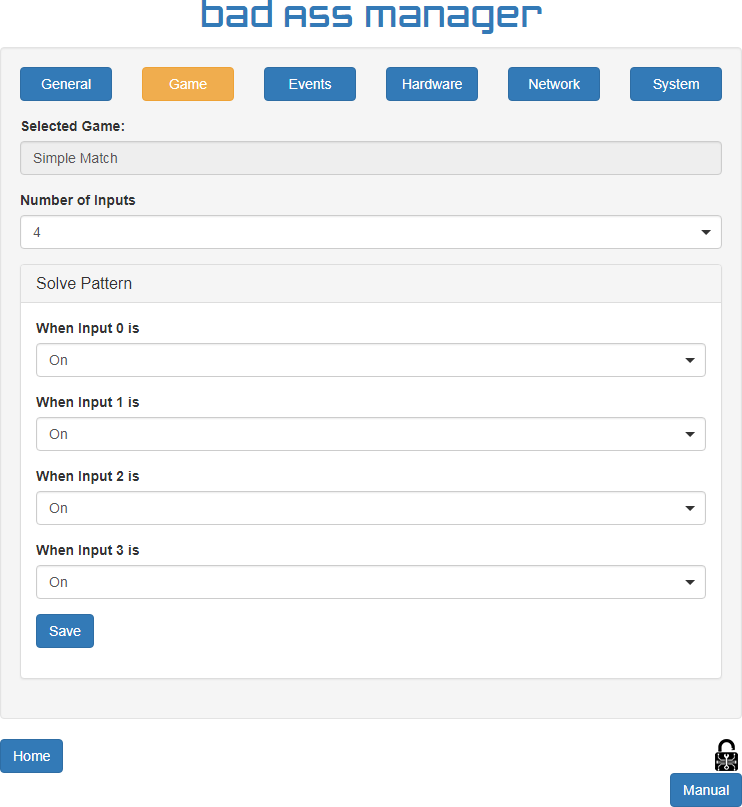

  5. Navigate to the Game tab and configure game settings. Click Save when finished.

    drawing

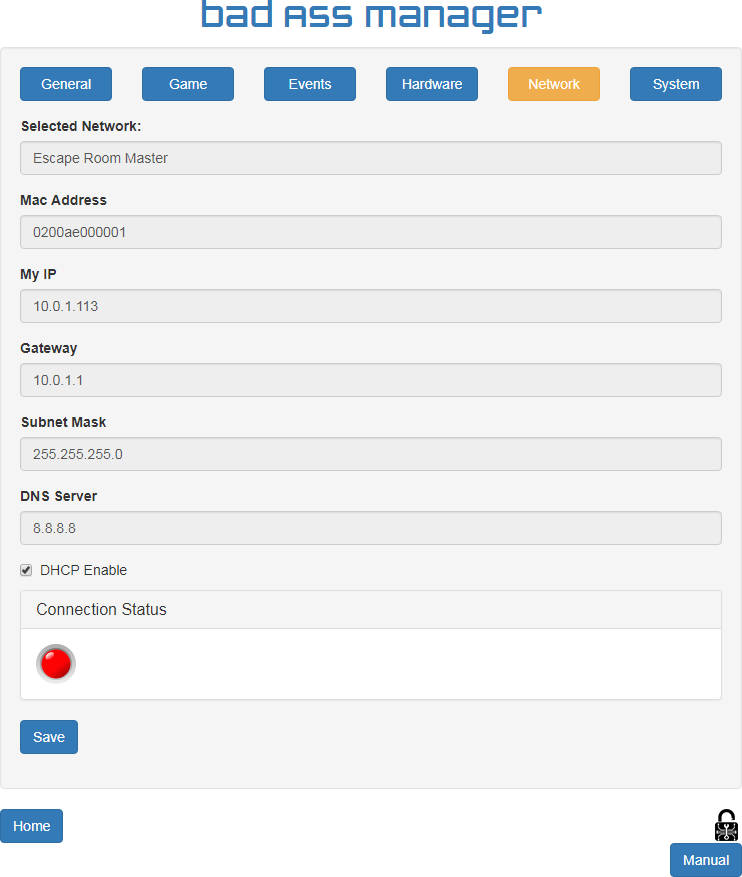

  6. Navigate to the Network tab and configure network settings. Click Save when finished.

    drawing

  7. Have fun!
